NGK AFx Air/Fuel Ratio Monitor



NGK AFx Air/Fuel Ratio Monitor $295.95
Part # 6300

NGK Spark Plugs is introducing its new Powerdex AFx Wideband Air-Fuel Ratio Monitor for the performance aftermarket. This product meets the increasing demand in the market for precision air-fuel ratio monitoring tools.

Traditionally these types of tools commanded price tags that could only be justified by professional race teams and engine specialists. As technology advanced, many low-cost air-fuel ratio products emerged. Some used actual wideband sensors while others simply read OE style narrowband oxygen sensor signals and attempted to convert them to linear readouts..often with marginal success.

With the AFx, NGK now offers the most affordable wideband system to date. A flexible and rugged system complete with everything needed to get you tuning. The kit comes with a digital display control module, 13' wiring harness, wideband air-fuel ratio sensor, exhaust boss and plug, and a comprehensive tuning manual. The tuning manual includes installation instructions and contains a detailed guide to performance air-fuel ratio tuning.




AFx Products
AFM1000 Products
Dynojet Applications
Tailpipe Probe


AFx Products


AFX Sensor

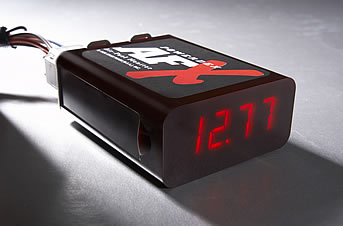

AFx Air Fuel Ratio Monitor (Part #6300) $295.95

The AFx Air/Fuel Ratio Monitor is the most affordable, low cost air fuel ratio system to date. The AFx is a great low cost AFR system for your tuning needs. The kit comes with a digital display control module. Includes digital display module, harness, performance UEGO sensor, fittings and instructions.





AFx Replacement Sensor


AFx Replacement Sensor (Part #6301) $180.00

  AFx Replacement Sensor




AFx Harness


AFx Harness (Part #6302) $80

Harness, AFx, 13 feet, connections for AFx controller, sensor and power.







18mm Bunge


18mm Bunge (Part # 5162) $5.60

18 mm, SS, weld in fitting to be mounted into the exhaust pipe.








18mm Plug


18mm Plug (Part # 5127) $6.50

18 mm, SS, plug for the 5162 bunge.









AFM1000 Products



AFM1000 Analyzer

AFM1000 analyzer (Part # 6000) , $1495

The best professional Air-Fuel Ratio Monitor with harness and laboratory UEGO Sensor. The AFM1000 is used by professionals in applications where the most accurate, true wide-range AFR is required. Includes module, harness, laboratory UEGO sensor, fittings and instructions.






AFM1000 sensor


AFM1000 sensor (Part # 5101) , $400

UEGO sensor for AFM1000, laboratory grade, the best AFR sensor available to provide accurate AFR data.







AFM1000 harness


AFM1000 harness:

3ft (Part # 5001) $130

10ft (Part # 5002) $160

20ft (Part # 5003) $195







Digital Display for AFM1000


Digital Display for AFM1000, 4" High LED (Part # 6401), $1248.75\

Digital Display for AFM1000. 0.56-inch Red LED, 8.0 to 18.0 AFR, 12 VDC power.
Dimensions: 4” W x 3 ½” L x 1” H.






Dynojet Applications



DJ1000 kit

The DJET1000 Kit is a complete plug-n-play air-fuel ratio (AFR) measurement system that includes analyzer, laboratory UEGO sensor, harness, fittings and instruction manual.

DJ1000 Kit, no probe. $2290




DJ1000 Kit with Probe. $2895






DJ1000 adapter


DJ1000 adapter (Part # 6505) , $895

Interface module to provide data from most AFR analyzers to the Dynojet Stack, Black







DJ1000 harness


DJ1000 harness (Part # 6504) , $195

Harness for DJ1000 system, power and interconnect wiring system




Tailpipe Probe



SS dual path tailpipe probe


SS dual path tailpipe probe (automotive) (Part # A50002-A) $695

External SS probe sampling system that draws exhaust from the tailpipe of a car, truck through a flexible probe placed in the tailpipe. The probe is mounted on a stand that can be easily adjusted to the vehicle's tailpipe height. A wide-range AFR sensor is located in the probe and measures the AFR. The AFR sensor is removable for optional mounting directly on the vehicle's exhaust system. A compact pump mounted at the probe's exit draws exhaust through the probe and past the sensor. For long, trouble-free operation, the pump is powered by shop air with out any moving parts.







SS dual path tailpipe probe


SS dual path tailpipe probe (motorcycle) (Part # A50002-C) $795

External SS probe sampling system that draws exhaust from the tailpipe of a car, truck, motorcycle, snowmobile, or ATV through a flexible probe placed in the tailpipe. The probe is mounted on a stand that can be easily adjusted to the vehicle's tailpipe height. A wide-range AFR sensor is located in the probe and measures the AFR. The AFR sensor is removable for optional mounting directly on the vehicle's exhaust system. A compact pump mounted at the probe's exit draws exhaust through the probe and past the sensor. For long, trouble-free operation, the pump is powered by shop air with out any moving parts.
